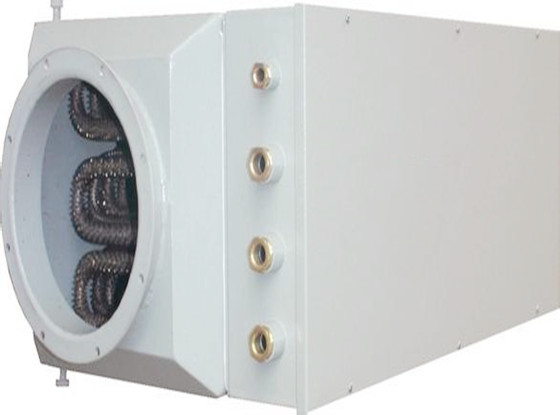

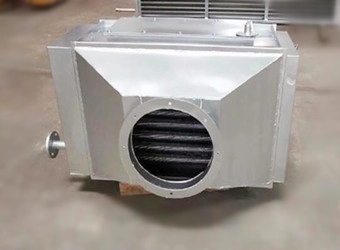

Air heater
Functional Characteristics Specification Parameter
  • The air is heated to a very high temperature of up to 850 ° C and the shell temperature is only about 50 ° C.
    High efficiency: up to 0.9 or more.
    The temperature rising and cooling rate block can reach 10 °C/S, and the adjustment is fast and stable. There is no leading air temperature lead and hysteresis, which makes the temperature control drift, which is suitable for automatic control.
    Good mechanical properties: Because its heating element is a special alloy material, it has better mechanical properties and strength than any heating element under the impact of high-pressure air flow, which is a system that needs to continuously heat the air for a long time. The attachment test is more advantageous.
    It is durable and has a service life of several decades without violating the usage regulations.
    The air is clean and small.
    Various types of air electric heaters can be designed according to the needs of users.
  • Rated voltage:220V、380V
    Nominal power:2KW~10000KW
    Explosion-proof grade:ExdⅡBT1-4
    Temperature control method:Automatic temperature control
    Temperature control accuracy:±1℃
The air electric heater is mainly used to heat the required air flow from the initial temperature to the required air temperature up to 850 °C. It has been widely used in many research and production laboratories such as aerospace, weapons industry, chemical industry and higher education institutions. It is especially suitable for automatic temperature control and high flow high temperature combined system and accessory test. Air electric heaters are used in a wide range: they can heat any gas, and the hot air produced is dry, non-conductive, non-conductive, non-flammable, non-explosive, non-chemically corrosive, non-polluting, safe and reliable, and heated up quickly. Controllable).
