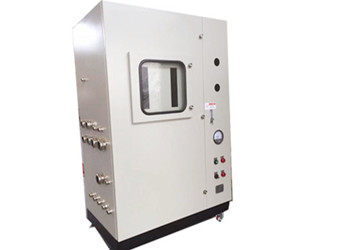

Explosion-proof control cabinet
Functional Characteristics Specification Parameter
  • Suitable for hazardous gas mixtures hazardous areas: Zone 1, Zone 2.
    Applicable to I, IIA, IIB, IIC explosive gas environment.
    Temperature group: T1-T4.
    Three-phase asynchronous motor frequency control.
    Please specify the outdoor type.

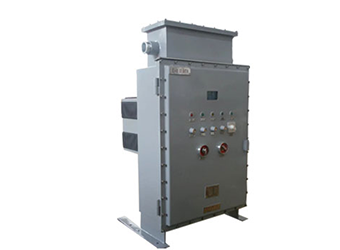

    BQP series explosion-proof inverter (cabinet) description:
    Shell Q235A carbon steel or stainless steel (304, 316) welded. The third-generation IGBT power device module is included in the circuit breaker, signal lamp, contactor, fuse, inverter, etc. (the circuit can be customized according to actual requirements).
    Full digital design. 16-bit high-speed CPU, complete power, simple operation.
    With remote or local control panel, the control is reliable and convenient.
    The grid voltage adapts to a wide range, and instantaneous power failure does not trip.
    With over voltage, under voltage, overload, overheating, instantaneous power failure, stall prevention, output loop and fast fuse protection.
  • Rated voltage:220V、380V
    Explosion-proof grade:ExdⅡBT1-4
    Temperature control method:Automatic temperature control
    Temperature control accuracy:±1℃
