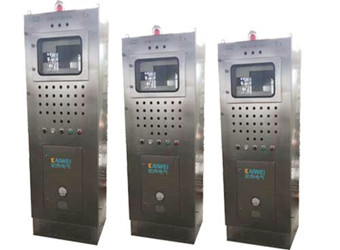

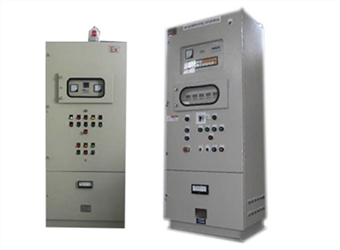

Flameproof control cabinet
Functional Characteristics Specification Parameter
  • There are two types of main and auxiliary cabinets: left and right, upper and lower. The main cabinet is a positive pressure sealed chamber. The front and rear doors are opened, and the front side is equipped with an observation window. The main cabinet is mainly equipped with a positive pressure air passage control system.
    It has the function of automatic air exchange before starting, ventilation delay, automatic air supply, and automatic control of positive pressure range.
    The operation is simple and convenient to use, and the "positive pressure operation" state is entered after the ventilation is completed.
    It has safety interlock protection functions such as positive pressure protection (upper and lower limit), sound and light alarm, positive pressure lower limit automatic power off, door open power failure, emergency manual power off and so on.
    Cable compression type introduction device.
    Various instruments, inverters, PLCs, soft starters, touch screens and computer control systems can be installed inside the product to achieve local and remote control.
  • Rated voltage:220V、380V
    Explosion-proof grade:ExdⅡBT1-4
    Temperature control method:Automatic temperature control
    Temperature control accuracy:±1℃
