Explosion-Proof Electric Heater
Explosion-Proof Electric Heater
Electric dust removal heater
Functional Characteristics Specification Parameter
  • It can heat any gas, and the generated hot gas is dry, non-conductive, non-burning, non-explosive, non-chemically corrosive, stable and reliable, and the heated space is heated up quickly (controllable).
  • Rated voltage:220V、380V
    Explosion-proof grade:ExdⅡBT1-4
    Temperature control method:Automatic temperature control
    Temperature control accuracy:±1℃

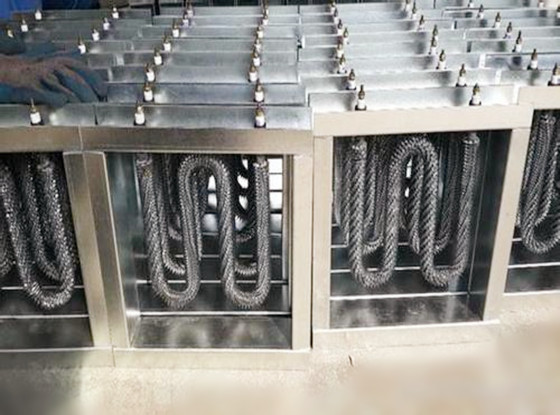

The high-temperature resistance wire is uniformly distributed in the high-temperature resistant stainless steel seamless tube, and the crystalline magnesium oxide powder having good thermal conductivity and insulation performance is densely filled in the void portion, and the structure is not only advanced, but also has high thermal efficiency and uniform heat generation, when high temperature resistance When a current flows through the wire, the generated heat is diffused to the surface of the metal tube by the crystalline magnesium oxide powder, and then transferred to the heated member or the air gas to achieve the purpose of heating.

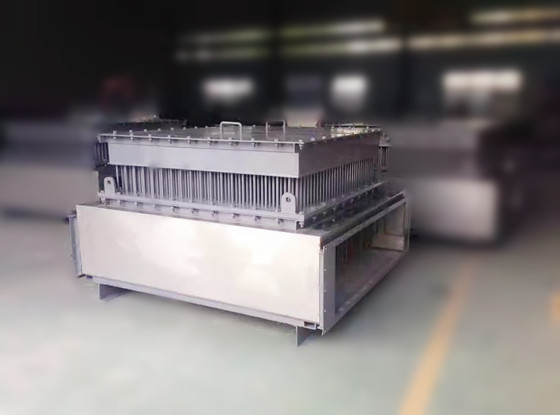

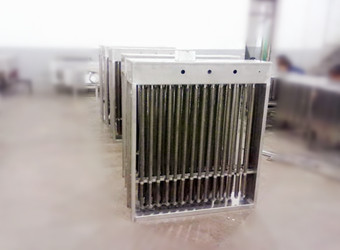

The dedusting electric heater is primarily used to heat the desired gas stream from the initial temperature to the desired gas temperature. It is especially suitable for automatic temperature control and high flow high temperature combined system and accessory test.
