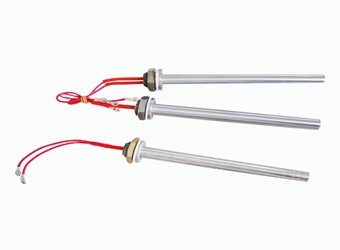

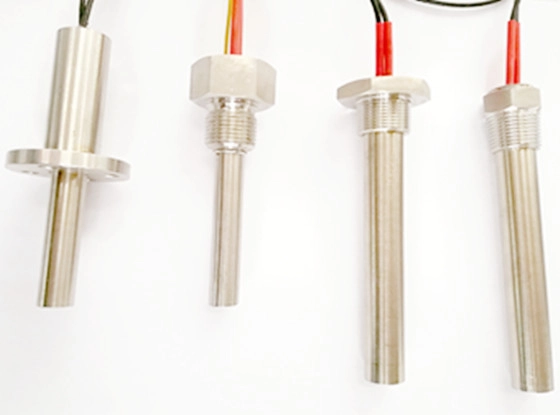

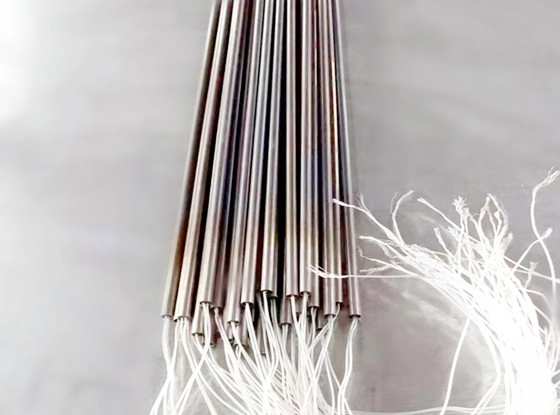

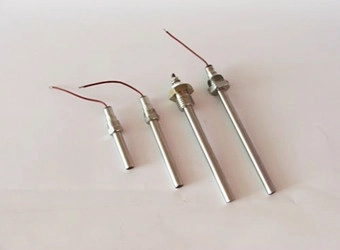

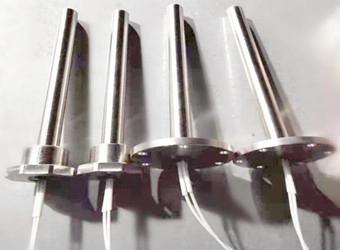

Single-head tube electric heater
Functional Characteristics Specification Parameter
  • 1. Conditions of use: ambient temperature -20 ° C ~ +60 ° C, relative temperature <80%;
    2. Electrical strength: cold state withstand voltage AC work 1500V 50HZ duration 1MIN no breakdown phenomenon;
    3. Thermal insulation performance: AC 1000V 50HZ duration 1MIN no breakdown phenomenon;
    4. Leakage current <0.5MA; insulation resistance >30MΩ;
    5. Power deviation +5%, -10%; surface load up to 25W per square centimeter;
  • Rated voltage:220V、380V
    Explosion-proof grade:ExdⅡBT1-4
    Temperature control method:Automatic temperature control
    Temperature control accuracy:±1℃
Single-head electric heating tube is suitable for working in heating medium that can't be connected at both ends, such as high and low temperature plug-in heating of various sizes of molds and mechanical equipment, including die and other molds, medical equipment, plastic sealing machine, bottle mouth cover Machine, continuous automatic sealing machine, cigarette making machine, etc. Mainly as follows:

1. Used to dry wood, paper, printing and dyeing, paint and so on.

2. Melt heating of saltpeter and other salt substances.

3. Melting low melting point alloys, such as molten lead furnaces, tin melting furnaces, etc.

4. Building heating.

6. Infrared radiant heating device.

7. Low-temperature electric furnaces such as industrial electric furnaces and electric furnace boxes for air circulation.

8. Oil, water and other chemical liquids, heating devices in the plating bath.

9. Seawater electric distillation unit.

10. Heating device for alkali and acid.

11. In the food industry, it is used to bake various breads, biscuits, pastries, and electric heating devices in flowing water tunnels.

12. Plastic products processing and molding extrusion equipment and rubber products molding vulcanization equipment.

13. Medical sanitation equipment, such as sterilizers, sterilizers, etc.

14. Heating, enameled wire drying device, etc. of motor vacuum dip coating equipment.

15. Various household electric heating appliances in daily life, such as electric stoves, electric ovens, rice cookers, electric frying pans, electric frying pans, water heaters, electric irons and other products.
